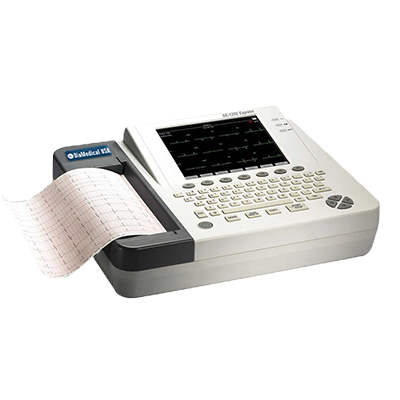

DiaMedical Infinity 1200 ECG Machine

The DiaMedical Infinity 1200 ECG machine offers accurate clinical performance and fast operations at an affordable price. The comprehensive Alphanumeric keyboard is user-friendly with practical one-touch operation and shortcuts for age and gender. The 8″ LCD display enables optimal examination of results and WiFi capability to transmit data.

User-Friendly Design
  • Alphanumeric Keyboard
  • One-touch operation
  • Built-In WiFi
  • 8″ LCD Display
  • Rechargeable Li-on Battery
  • Built-in Thermal Printer
Freeze & Review 120 Second Real-Time ECG Waveforms
  • Extend printing once an arrhythmia is detected
  • Automatic measurements and interpretation tested by the CSE/AHA/MIT database
  • Internal memory of 100 ECGS with an onboard PDF creator
  • Easily create reports to drag and drop into an EMR
Data Management
  • Large internal memory holds 100 EKGs and can be enlarged by USB flash disk
  • Built-in data management with reports review
  • On-board PDF creator making file transfer simple and seamless
  • PDF, SCP. FDA-XML and DICOM data export options
  • Bi-directional communication with SE-1515 Data Management System
Exceptional Clinical Performance
  • Weak signal detection with 24 bits A/D converter technology
  • Built-in high resolution thermal printer with extended printing
  • Automatic measurements and interpretation tested by CSE/AHA/MIT database
  • Comprehensive filters & anti-noise technology


    Specifications

    ECG
    • Input Circuit: Defibrillation protection
    • Lead: Standard 12 leads
    • A/D Resolution:24 bits
    • Time Constant: >3.2s
    • Frequency Response: 0.05Hz ~ 150Hz (-3dB)
    • Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)
    • Working Mode: Auto/Manual/Rhythm/R-R/OFF
    • Rhythm: Single channel or three channels selectable
    • Communication Interface: Ethernet, RS232, USB
    Power
    • Input Impedance: >50MΩ (10Hz)
    • Input Circuit Current: <1.01µA
    • Input Voltage Range: +5mVpp
    • Calibration Voltage: 1mV+2%
    • DC Offset Voltage: +600mV
    • Power Supply: AC – 100V-240V, 50/60Hz
    • Battery: Built-in rechargeable Li-ion battery For 300 copies ECG printing
    Filter
    • Noise: <12.5µVp-p
    • Filter: AC Filter: On/Off
      – DFT Filter: 0.5Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz
      – EMG Filter: 25Hz/35Hz/45Hz/OFF
      – Lowpass Filter: 150Hz/100Hz/75Hz
    • CMRR: >115dB
    Printer
    • Printer: Thermal printer/External printer
    • Record Paper: Roll and Z-fold
    • Paper Width: 216mm, 210mm
    • Record Speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (+3%)
    Dimensions
    • Dimensions: 16.5″ L x 13.0″ W x 4.1″ H
    • Weight: 11 lbs (5 kg)
    • Display: 800 x 600 dots multicolor LCD Screen

      Includes

      ECG Cable & Electrodes
      • ECG Cable (4mm, banana connector, AHA)
      • 100 Resting Tab Electrodes
      • 10 Unomedical 10-Lead Universal Clips
      Recording Paper
      • One (1) Pack Z-fold, 210 mm
      Power
      • U.S. Standard power cord
      • Rechargeable 2200 mAH Lithium battery
      Product Information
      • User Manual
      • Quick Reference Card
      • User Guide for Interpretation
