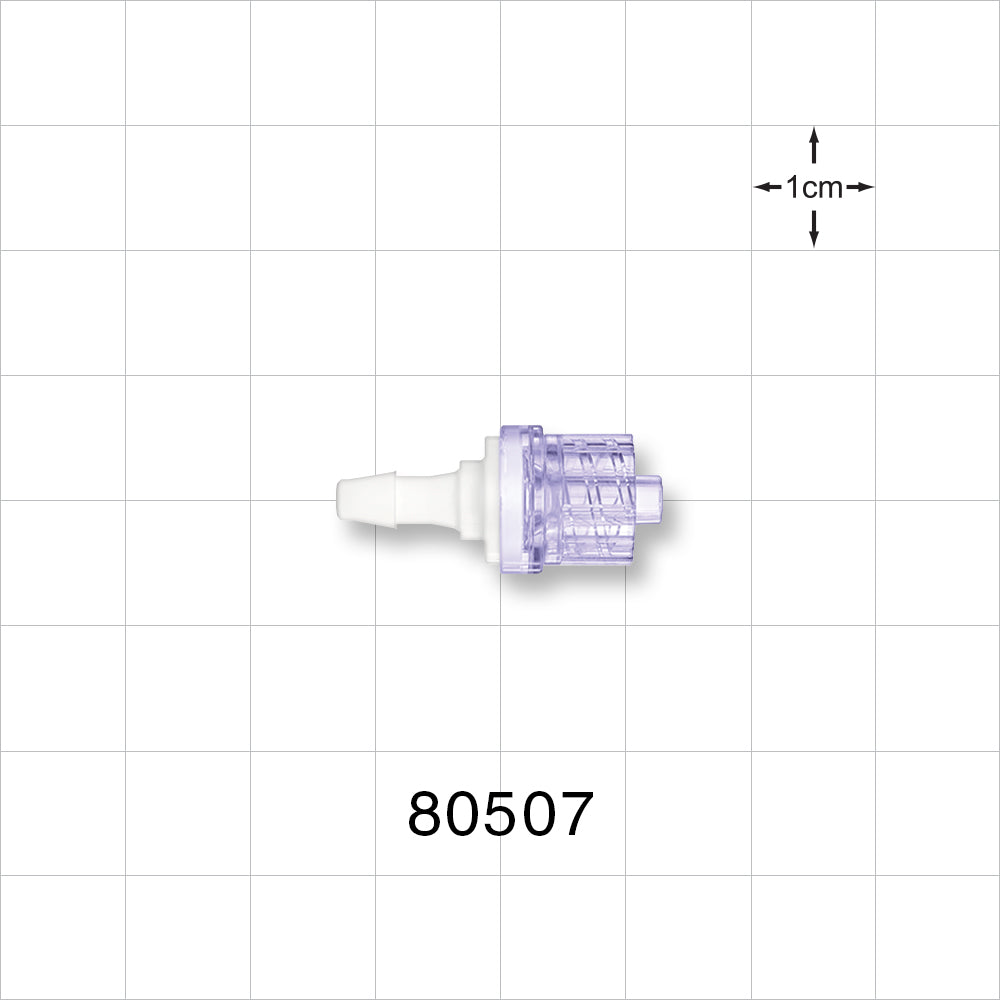

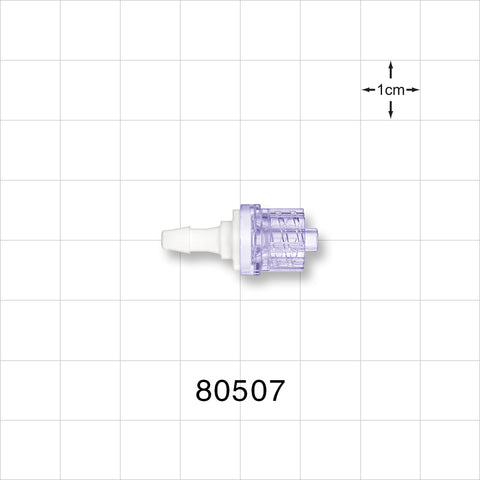

Check Valve, Barbed Inlet, Male Luer Lock Outlet - Fits 1/8 inch ID Tubing (0.125 inch, 3.18 mm); 0.087 psi CP - 80507
Qosina offers an extensive line of Check Valves available in a variety of styles that are in stock and ready for immediate delivery. Made of SAN, MABS, and silicone, Qosina part # 80507 features a low, 0.087 psi cracking pressure ideal for infusion, drainage and irrigation applications. This barbed check valve accommodates 1/8 inch ID tubing on the inlet and a male luer lock outlet. It provides controlled directional flow, and eliminates the need for bonding. Qosina offers a variety of flow rates, materials, cracking pressure and back pressure options. Check Valve sample kits are also available which are ideal for testing.
| Technical Detail | Fits 1/8 inch ID Tubing (0.125 inch, 3.18 mm); 0.087 psi CP |
| Materials | MABS SAN Colorant Silicone |
| CAD Model Available | Yes |
| Manufacturing Environment Classification | ISO Class 8 / 100,000 / Grade D |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | Yes |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | No shelf life indicated by the supplier |
| Product Shelf Life Post-Irradiation (months) | 48 |
| California Prop. 65 | SOME Substances on the California Proposition 65 list have been knowingly or intentionally added |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| PFAS | Does NOT intentionally contain PFAS |
| PFAS in Packaging | Does NOT intentionally contain PFAS |
| Pyrogens | Not Tested for Pyrogens |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2024 June 27 (241 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Raw Material |
| USP Biocompatibility 87 | Finished component passes USP<87> |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Finished Component |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Visible-Subvisible Particulate Claim | Information Not Available |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
$4.95
QS-80507
QSN
Check Valves
200 In Stock
Qosina offers an extensive line of Check Valves available in a variety of styles that are in stock and ready for immediate delivery. Made of SAN, MABS, and silicone, Qosina part # 80507 features a low, 0.087 psi cracking pressure ideal for infusion, drainage and irrigation applications. This barbed check valve accommodates 1/8 inch ID tubing on the inlet and a male luer lock outlet. It provides controlled directional flow, and eliminates the need for bonding. Qosina offers a variety of flow rates, materials, cracking pressure and back pressure options. Check Valve sample kits are also available which are ideal for testing.
