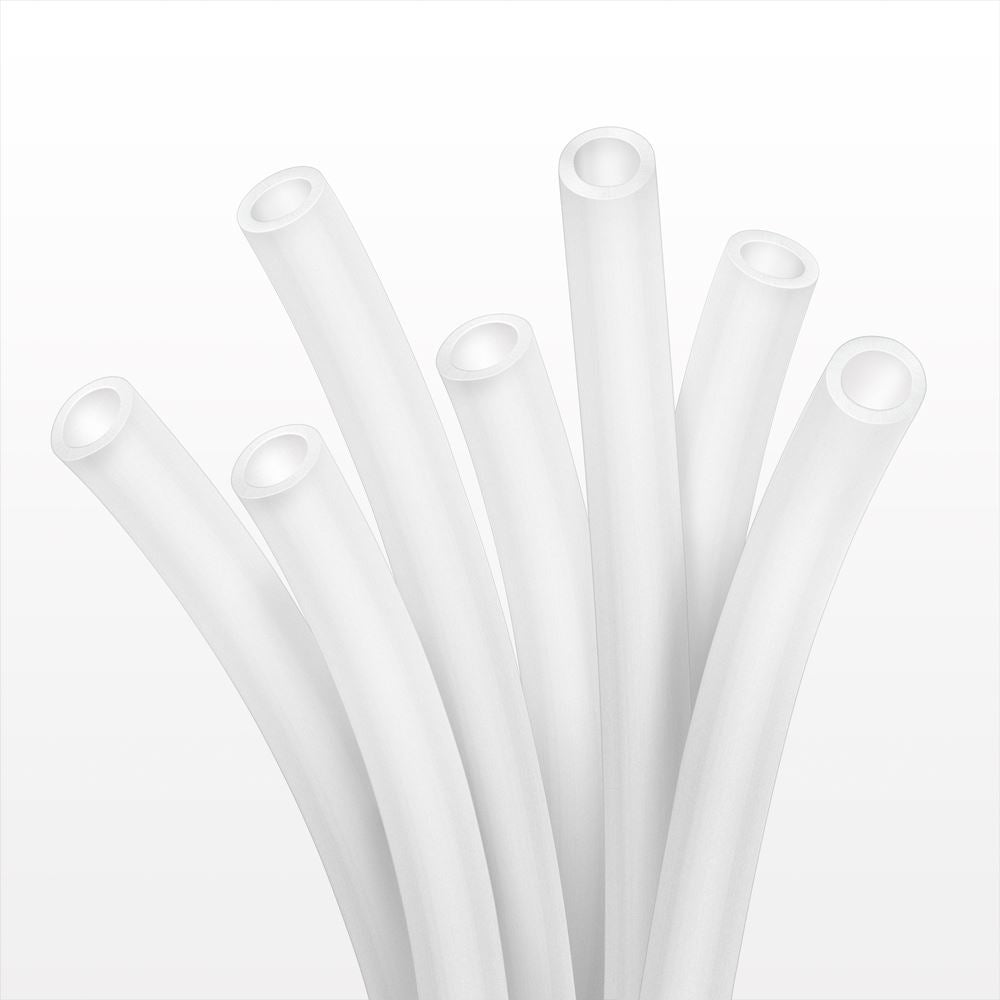

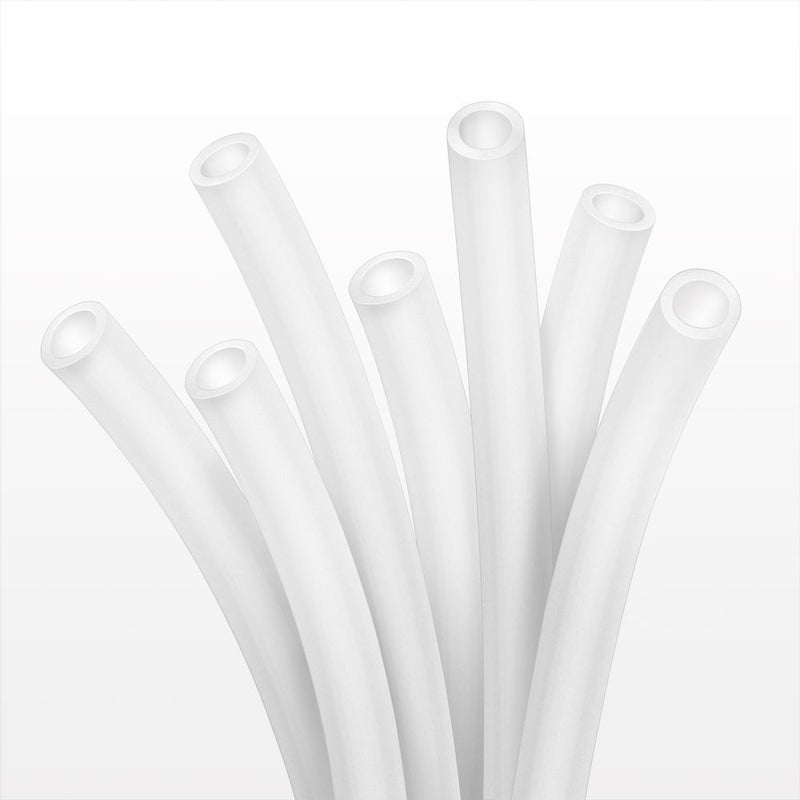

PharmaFocus Premium Reinforced Tubing - 65A Durometer; 3/8 inch ID x 5/8 inch OD (0.375 inch x 0.625 inch, 9.53 mm x 15.88 mm) x 50 ft coil (15.24 m) - T5532
PharmaFocus Premium reinforced tubing is a single-braid reinforced 65A durometer silicone tubing for enhanced performance in high-pressure and vacuum processes. The single-braid is designed to remain flexible while resisting kinking and compression.
| Technical Detail | 65A Durometer; 3/8 inch ID x 5/8 inch OD (0.375 inch x 0.625 inch, 9.53 mm x 15.88 mm) x 50 ft coil (15.24 m) |
| Materials | Silicone |
| CAD Model Available | No |
| Packaging | 50 ft coil (15.24 m) |
| Manufacturing Environment Classification | ISO Class 8 / 100,000 / Grade D |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 60 |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| European Pharmacopoeia (EP) 3.1.X | Pass 3.1.9 Silicone |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Medicinal Substances | Information Not Available |
| Nanomaterials | Information Not Available |
| Pyrogens | Pyrogen free - Tested via USP <85> |
| REACH SVHC | Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2024 January 23 (240 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Raw Material |
| USP Biocompatibility 87 | Finished component passes USP<87> |
| USP Biocompatibility 88 | Passes USP <88> 121C |
| USP Biocompatibility Claim Based On | Finished Component |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | Modified BPOG |
| Visible-Subvisible Particulate Claim | USP <788> |
| Bioburden USP 61 62 | Bioburden values available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
$1,054.95
QS-T5532
QSN
Platinum-Cured Silicone
200 In Stock
PharmaFocus Premium reinforced tubing is a single-braid reinforced 65A durometer silicone tubing for enhanced performance in high-pressure and vacuum processes. The single-braid is designed to remain flexible while resisting kinking and compression.
