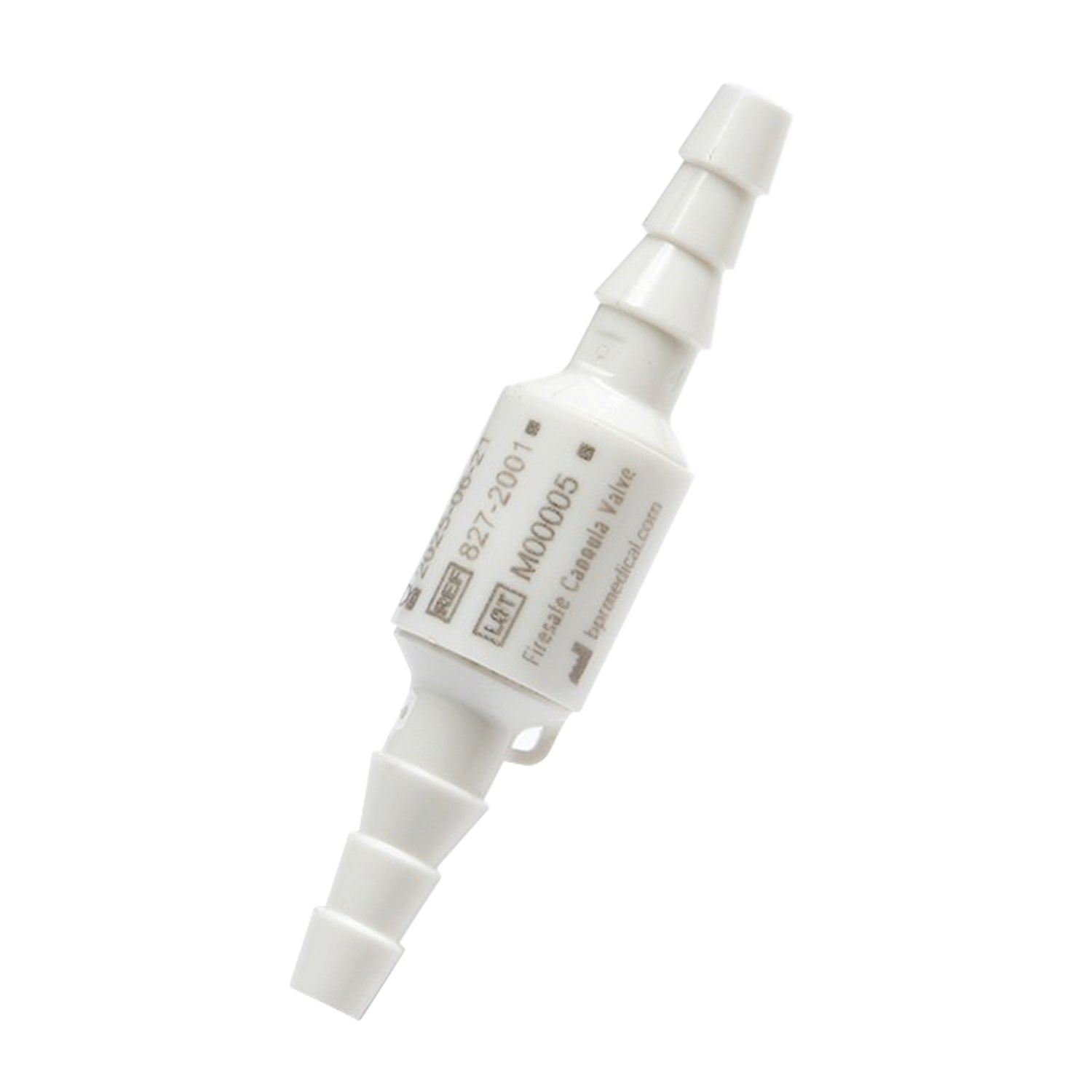

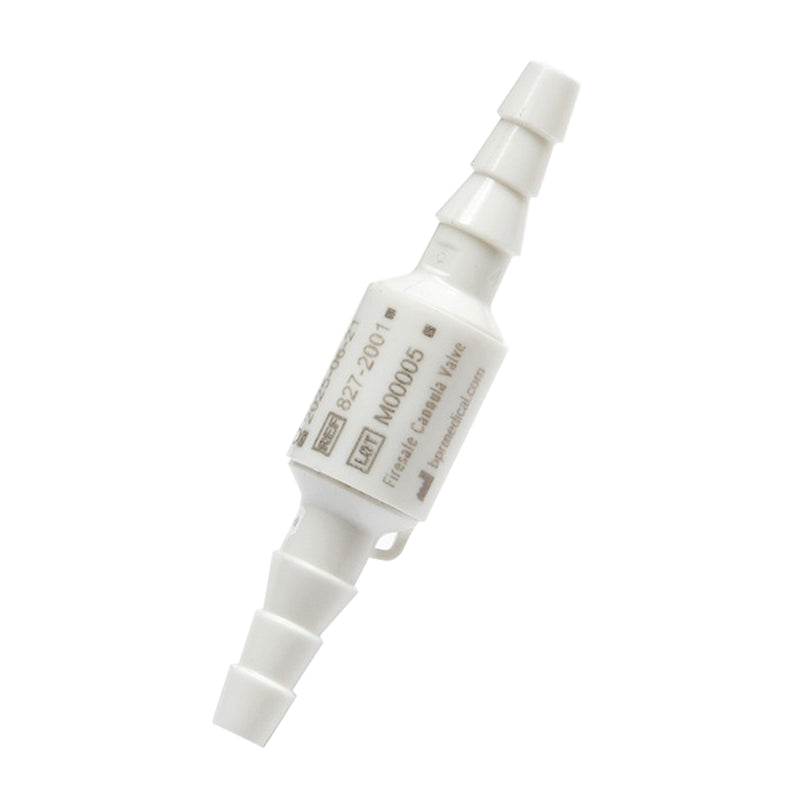

Firesafe Valve - Each RES010
Brand: BPR Medical
$8.95
In stock
Secure checkout with:
Medical device notice: Use this product only as directed. It is not intended to diagnose, treat, cure, or prevent any disease.
- Shipping: Standard delivery within 4–6 business days & transit via USPS, FedEx or UPS · cost shown in cart before payment. Exact rates
- Returns: 30-day window · 5% restocking fee (waived if we made an error or the item is defective). Full policy
- Tax: Sales tax calculated at checkout based on your delivery address.
Each
- Bidirectional
- Helps protect against oxygen tubing fires
- A thermal fuse (a.k.a. a firebreak) designed to stop the flow of oxygen in the event that the downstream oxygen tubing is ignited
- Helps keep patients safe no matter what method of oxygen delivery they use
- Offers a cost-effective solution to lower the risk of serious patient injury in an oxygen fire
Gas Compatibility Oxygen and oxygen enriched air Maximum Operating Pressure 600 kPa* *Maximum static pressure delivered by the gas supply source
Flow Rate 0.25* – 25 l/min The Firesafe Cannula Valve can be safely used at lower flow rates but may not meet the internal leak rate of 10 ml/min when activated in the event of a fire.
Resistance to Flow ≤ 0.07 kPa at 2 l/min
≤ 0.3 kPa at 5 l/min
≤ 1 kPa at 10 l/minIntended Life 5 years, expiry date engraved on device Application Single patient multiple use Packaging 100 units per box (5 bags per box, 20 units per bag) Connections EN 13544-2, 6 mm nominal tubing connection Environmental Limits for Transport and Storage Temperature: -25 °C to 70 °C (-4 °F to 140 °F) Humidity: 0 – 100 % RH Environmental Limits for Use Temperature: 0 °C to 50 °C (32 °F to 122 °F) Humidity: 0 – 100 % RH Applied Standards EN 13544-2:2002 – Respiratory Therapy Equipment – Part 2: Tubing and connectors. Regulatory EC: MDD Class IIa Medical Device USA: FDA Registered Class 1 Medical Device; 510(k) exempt
GMDN Code and Term: 60391 – Fire safety valve
