Tuohy Borst Adapter, Barbed - 6 FR - 18 FR (0.078 inch - 0.236 inch, 2 mm - 6 mm); 0.449 inch - 0.472 inch OD Barb (11.4 mm - 11.9 mm) - 22828

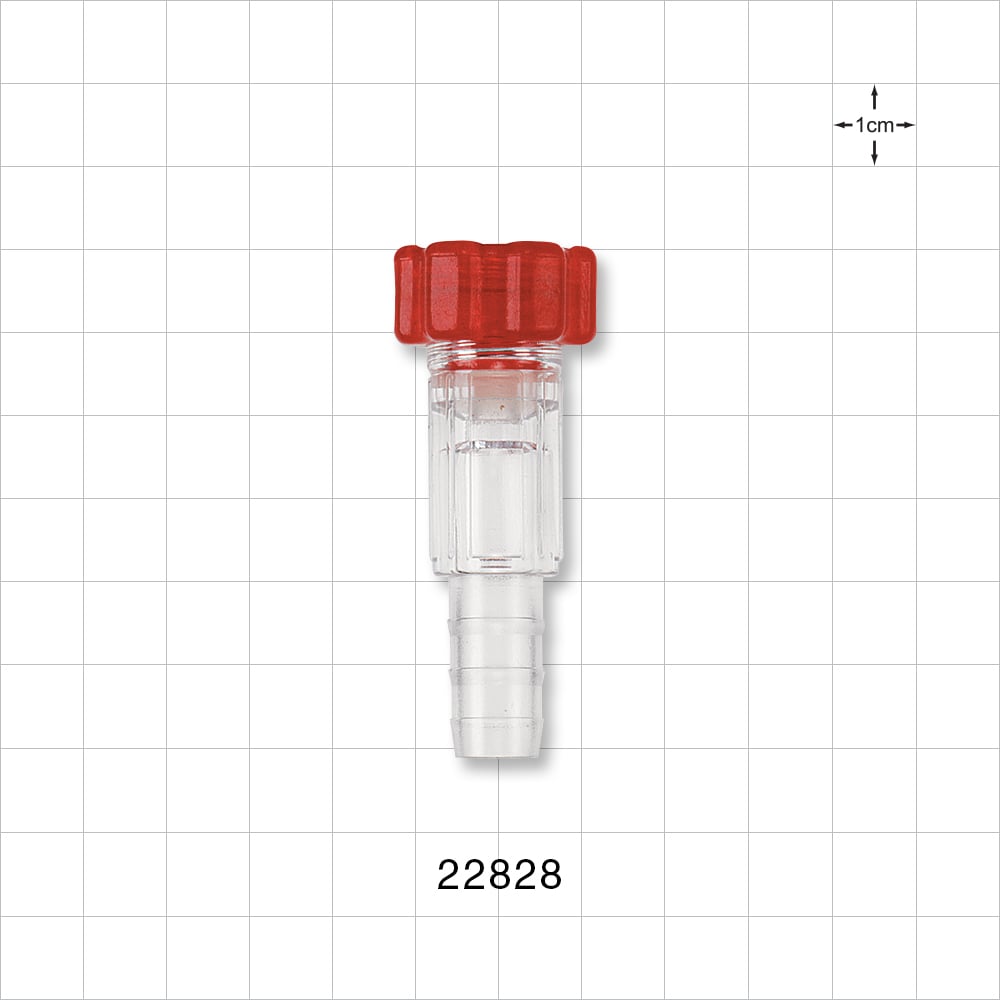

Qosina offers a variety of valves and tuohy borst adapters that are in stock and ready for immediate delivery. Made with a red flat cap, Qosina part #22828 is a tuohy borst adapter with a clear polycarbonate body designed to prevent the backflow of fluid around instruments 6 FR - 18 FR. With a barbed connector that accepts 0.449 inch - 0.472 inch ID tubes, this large bore tuohy is ideal for applications which require the use of large instruments or devices. Qosina has a wide selection of large bore tuohy borst adapters to meet your project requirements.
| Technical Detail | 6 FR - 18 FR (0.078 inch - 0.236 inch, 2 mm - 6 mm); 0.449 inch - 0.472 inch OD Barb (11.4 mm - 11.9 mm) |
| Materials | PC Silicone |
| CAD Model Available | Yes |
| Manufacturing Environment Classification | Controlled but not formally classified |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | Yes |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | No shelf life indicated by the supplier |
| Animal Derived Ingredients (BSE/TSE) | Conforms with EMA/410/01 rev. 3 |
| California Prop. 65 | SOME Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 1/3/2025 12:00:00 am |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP22 - 01 May 2026 |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Medicinal Substances | Does NOT intentionally contain medicinal substances |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| PFAS | Does NOT intentionally contain PFAS |
| PFAS in Packaging | Does NOT intentionally contain PFAS |
| Pyrogens | Pyrogen free - Tested via USP <151>/<161> |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2025 January 21 (247 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Steam Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Raw Material |
| USP Biocompatibility 87 | Raw materials pass USP <87> |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Raw Material |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Visible-Subvisible Particulate Claim | Information Not Available |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
$19.95
QS-22828
QSN
Tuohy Borst Adapters
200 In Stock
Qosina offers a variety of valves and tuohy borst adapters that are in stock and ready for immediate delivery. Made with a red flat cap, Qosina part #22828 is a tuohy borst adapter with a clear polycarbonate body designed to prevent the backflow of fluid around instruments 6 FR - 18 FR. With a barbed connector that accepts 0.449 inch - 0.472 inch ID tubes, this large bore tuohy is ideal for applications which require the use of large instruments or devices. Qosina has a wide selection of large bore tuohy borst adapters to meet your project requirements.
