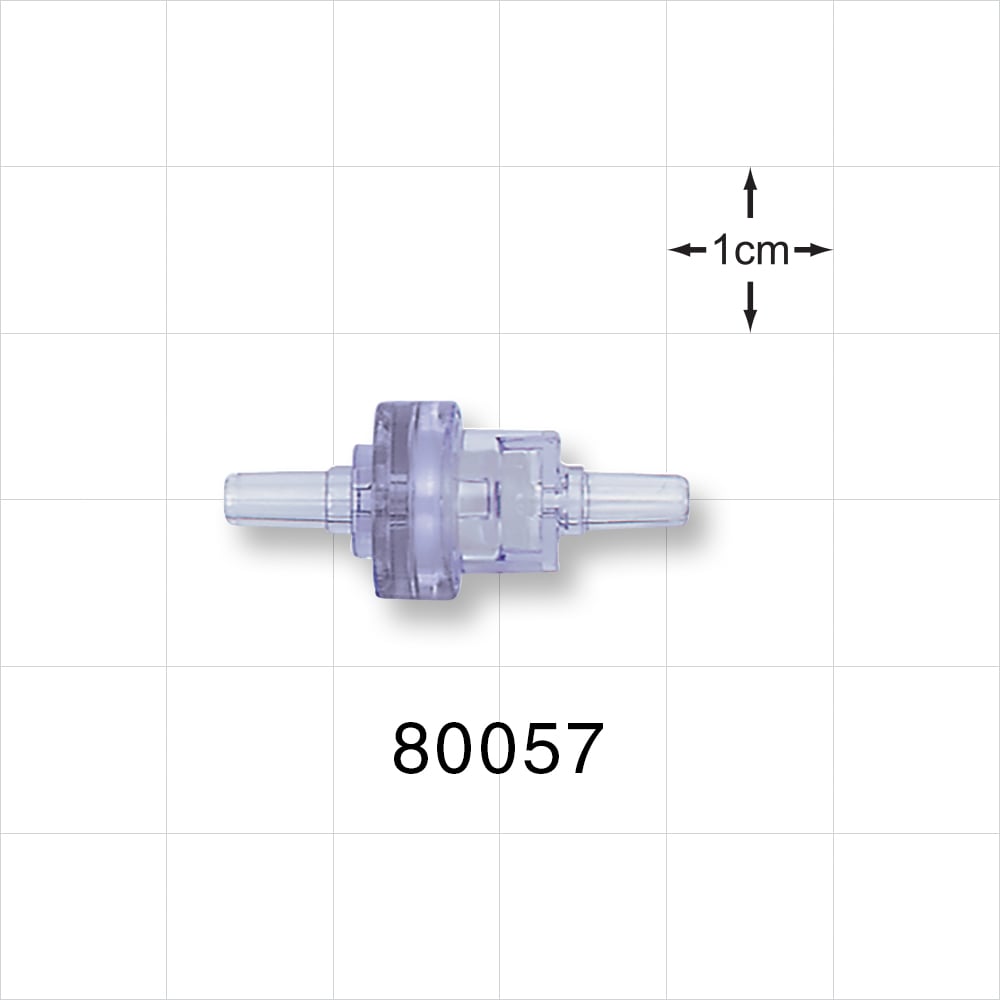

Duckbill Check Valve - 0.13 inch OD (3.3 mm); 0.112 psi CP - 80057
Brand: QSN
$9.95
In stock
Secure checkout with:
Medical device notice: Use this product only as directed. It is not intended to diagnose, treat, cure, or prevent any disease. Read our full disclaimer.
- Shipping: 1–2 business day processing · 3–4 day transit via USPS, FedEx or UPS · cost shown in cart before payment. Exact rates
- Returns: 30-day window · 5% restocking fee (waived if we made an error or the item is defective). Full policy
- Tax: Sales tax calculated at checkout based on your delivery address.
Qosina offers an extensive line of Check Valves, available in a variety of styles that are in stock and ready for immediate delivery. Qosina part #80057 is in-line and features a 0.130 inch OD tubing port on each end and has a low, 0.112 psi cracking pressure which determines when the component starts to open. Made of polycarbonate and silicone, this duckbill valve style is ideal for applications where back pressure is a concern. Qosina offers a variety of flow rates, materials, cracking pressure and back pressure options. Check Valve sample kits are also available which are ideal for testing.
| Technical Detail | 0.13 inch OD (3.3 mm); 0.112 psi CP |
| Materials | Silicone PC |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 8 / 100,000 / Grade D |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | No shelf life indicated by the supplier |
| California Prop. 65 | SOME Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 11/16/2023 07:00:00 pm |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP20 - 01 February 2025 |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| PFAS | Does NOT intentionally contain PFAS |
| PFAS in Packaging | Does NOT intentionally contain PFAS |
| REACH SVHC | Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2024 January 23 (240 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Visible-Subvisible Particulate Claim | Information Not Available |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
