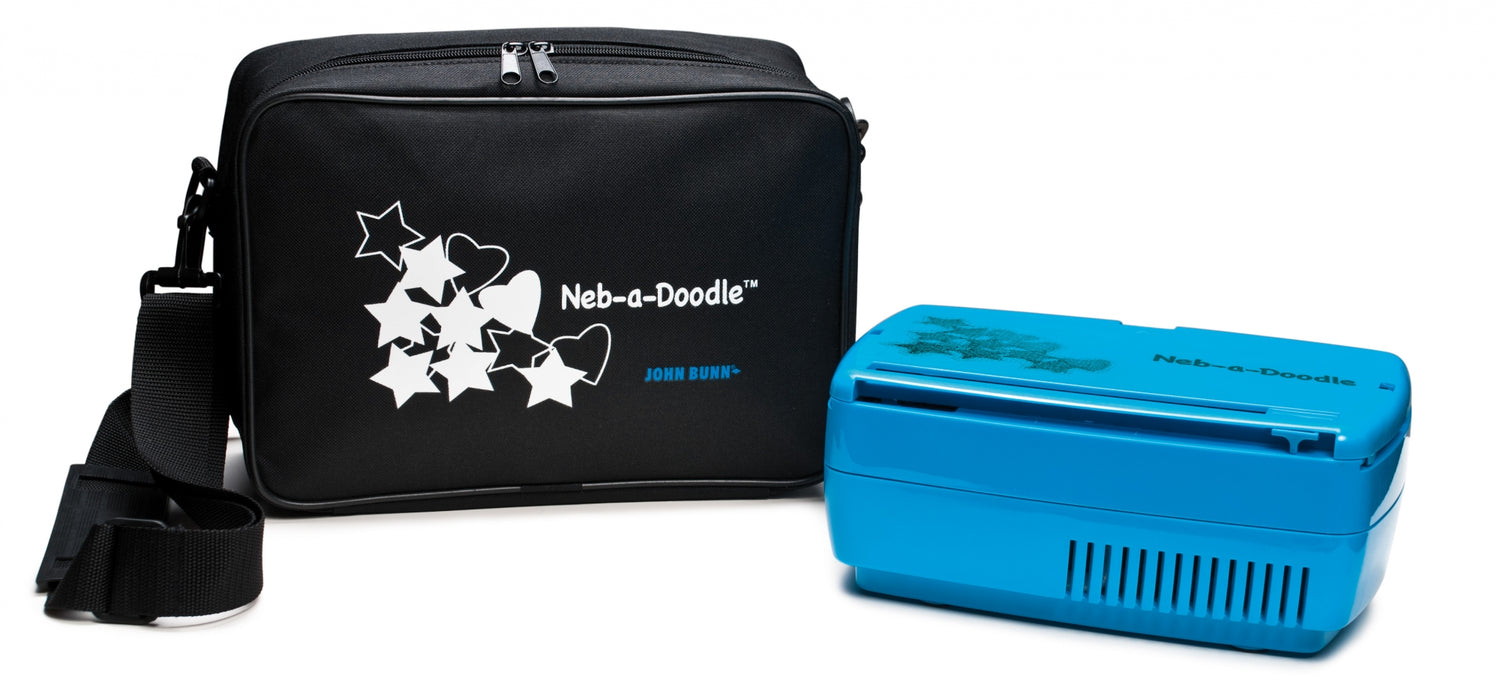

Graham Field John Bunn Neb-u-Tyke Neb-a-Doodle Pediatric Nebulizer and Deport Carry Case ( Packaging - Each of 1 )
Brand: Graham Field
In stock
Medical device notice: Use this product only as directed. It is not intended to diagnose, treat, cure, or prevent any disease. Read our full disclaimer.
- Shipping: 1–2 business day processing · 3–4 day transit via USPS, FedEx or UPS · cost shown in cart before payment. Exact rates
- Returns: 30-day window · 5% restocking fee (waived if we made an error or the item is defective). Full policy
- Tax: Sales tax calculated at checkout based on your delivery address.
This interactive, child-friendly design provides a solution for effective aerosol treatment for children. Designed with an integrated drawing board, the Neb-a-Doodle will keep child relaxed and entertained during aerosol treatment and can be used over and over again. The John Bunn® Neb-u-Tyke® Neb-a-Doodle® is the latest addition to the Graham-Field line of quality nebulizer compressors that offer innovation, performance, and value for both patients and providers.
Features:
- Reliable, piston-driven compressor
- Interactive, drawing board for child to draw, doodle and write during nebulizer treatment
- Convenient and compact design for easy transport and storage
- Comes complete with Nebulizer Accessory Kit
- Five year limited warranty
- Designed to meet the requirements of HCPCS Code: E0570
The John Bunn® Neb-u-Tyke® Neb-a-Doodle® Nebulizer comes complete with:
1 Neb-u-Tyke® Neb-a-Doodle® Nebulizer Compressor
1 User Manual
1 Nebulizer Accessory Kit complete with
1 Reusable nebulizer (single patient use only)
1 Adult mask
1 Pediatric mask
1 Mouthpiece
1 PVC tubing
1 “T” adapter
3 Spare filters
1 Reservoir tube
Specifications
| Power | 115VAC, 60Hz |
| Power Consumption | ≤ 60 watts |
| Operating Temperature Range | 41°F TO 104°F |
| Operating Humidity Range | 30 to 95% RH |
| Storage Temperature Range | 40°F TO 158°F |
| Storage Humidity Range | 10 to 95% RH |
| Dimensions | 10" × 6.5" × 4.2" (255 mm x 166m x 108 mm) |
| Weight | 4 lbs |
| Max Pressure (Compressor) | 32.5 psi |
| Max Flow (Compressor) | Approx 12 LPM |
| Particle Size (Nebulizer) | ≤5 microns |
| Capacity (Nebulizer) | 5 ml |
| Method Of Nebulization | Piston Driven |
| Sound Level | under 57 dBA |
