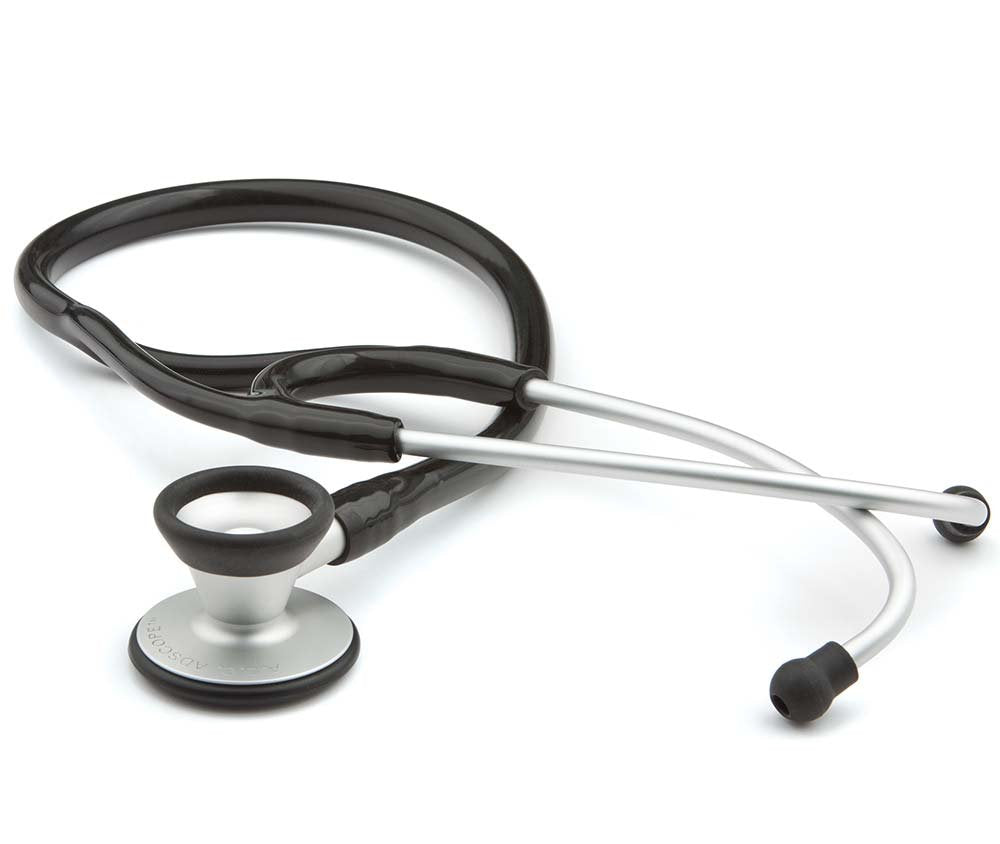

Cardiology scope performance at a fraction of the weight, now with AFD technology.

The Adscope^® 606 series features:

• Combination chestpiece precisely CNC machined to exacting tolerances from ultra-lightweight aluminum alloy
• Extra-deep bell for unsurpassed low-frequency response
• Ultra-sensitive diaphragm for greater amplification and crisper high-frequency transmission
• AFD technology further enhances acoustic response; use light pressure for low frequencies, firm pressure for high frequencies
• Cardiology headset with large-bore aluminum binaurals fixed at 15° angle to maximize comfort and acoustic seal
• Bi-lumen (dual bore) 19" PVC tubing is soft and flexible and has been made without phthalates since 2014
• Adsoft^™ Plus snap-on silicone eartips for the ultimate in wearing comfort and acoustic seal
• Includes accessory kit with two spare pairs of Adsoft^™ Plus eartips
• Scope ID tag included
• Weighs just 4.5 oz. (130 gr.)
• Overall length 28"
• Assembled, inspected, and packaged in the USA
• Lifetime warranty

  Chestpiece Type:	Combination
  Chestpiece Material:	Aluminum
  Chestpiece Finish:	Satin
  Chestpiece Weight:	1.6 oz
  Chestpiece Weight(gm):	45.4 g
  Diaphragm Diameter:	1-3/4"
  Diaphragm Diameter(cm):	4.45 cm
  Diaphragm Material:	Epoxy/Fiber Glass
  Diaphragm Type:	Standard
  Bell Diameter:	1-3/8"
  Bell Diameter(cm):	2.85 cm
  Headset Type:	Cardiology
  Headset Material:	Aluminum
  Headset Finish:	Satin
  Tubing Length:	19"
  Tubing Length(cm):	48 cm
  Total Length:	28"
  Total Length(cm):	71 cm
  Total Weight:	4.5 oz
  Total Weight(gm):	130 g
  Scope Warranty:	Lifetime
